Restore your engine’s power generation with a technically suitable replacement for a defective alternator stator
The alternator ensures that the electrical system is supplied with energy while driving and that the battery is recharged. The stator forms the fixed part of this alternator and, together with the rotating rotor, generates alternating voltage. When the stator fails, the battery can slowly drain while driving, eventually causing starting or electrical problems.

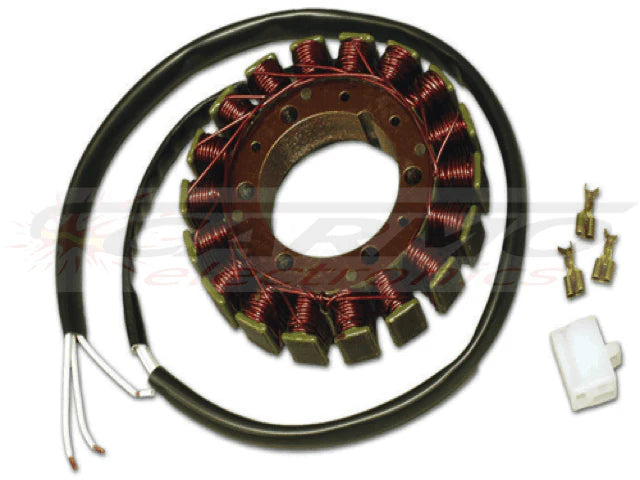

In this collection, you will find an improved alternator stator from Carmo for various motorcycles. The part is newly manufactured and intended as a replacement for different original stators and OEM references. Because plugs, cable outlets, mounting points, and electrical values vary per engine, the application must be carefully checked.
A stator is sometimes generally called an alternator, but it only forms one part of the complete charging system. The generated alternating voltage is converted and regulated by the voltage regulator and rectifier before it goes to the battery and onboard electronics.
A defective stator can cause the battery to be insufficiently recharged while driving. Possible symptoms include difficulty starting, dimming lights, electrical malfunctions, or an engine that eventually stalls because the battery voltage drops too low.
These symptoms do not automatically mean the stator is defective. A worn battery, faulty voltage regulator, poor ground, burnt connector, or damaged wiring can also cause charging problems. Therefore, perform a targeted diagnosis before replacing parts.
In case of a charging problem, the battery, stator, voltage regulator, and wiring must be checked as one system. Measure the battery voltage with the engine off and running, and check the alternating voltage between the stator wires according to the workshop manual.
Inspect connector connections for discoloration, corrosion, and heat damage. A poor connection in a connector can cause resistance and heat, which can heavily strain a new stator or voltage regulator again.
Select an alternator stator not only based on the engine model. Also compare the year of manufacture, plug configuration, cable length, mounting points, and the original part number. Some motorcycle series were delivered with different charging components during the production period.
For installation, the alternator cover must be removed, and engine oil or a separate gasket may be required. Follow the prescribed cable routing and prevent wiring from running along the rotor, exhaust, or sharp engine parts. If in doubt, have the installation and electrical diagnosis performed by a motorcycle specialist.
